| 产品信息 |
|
|

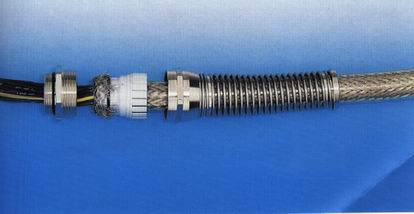

HSK-M-Flex-EMV电磁兼容带防折保护的旋紧件
|
|
| 产品分类：德国胡默尔电缆旋紧件产品系列 |
HSK-M-Flex-EMV电磁兼容带防折保护的旋紧件 PG/PG-加长
 |
材料：黄铜镀镍
防折弹簧：1.4310
夹紧件：尼龙塑料（PA)
密封件：丁睛橡胶（NBR)
O-密封圈:丁晴橡胶（NBR)
防护等级：IP68-10巴（旋紧部位）
环境温度：-40°C至100°C,短时至120°C |
|
AG
PG |
>|Φ<|
mm |
GL
mm |
H
mm |
d
mm |
Ψ
mm |
订货号 |
GL
mm |
订货号 加长 |
|
7 |
3-6.5 |
5 |
55 |
6.8 |
14 |
1.624.0700.01 |
10 |
1.691.0700.60 |
|
7 |
2-5 |
5 |
55 |
6.8 |
14 |
1.624.0700.15 |
10 |
1.624.0700.61 |
|
9 |
4-8 |
6 |
66 |
8.2 |
17 |
1.624.0900.01 |
10 |
1.624.0900.60 |
|
9 |
2-6 |
6 |
66 |
8.2 |
17 |
1.624.0900.15 |
10 |
1.624.0900.61 |
|
11 |
5-10 |
6 |
77 |
10.3 |
20 |
1.624.1100.01 |
10 |
1.624.1100.60 |
|
11 |
3-7 |
6 |
77 |
10.3 |
20 |
1.624.1100.15 |
10 |
1.624.1100.61 |
|
13.5 |
6-12 |
6.5 |
88 |
12.3 |
22 |
1.624.1300.01 |
10 |
1.624.1300.60 |
|
13.5 |
5-9 |
6.5 |
88 |
12.3 |
22 |
1.624.1300.15 |
10 |
1.624.1300.61 |
|
16 |
10-14 |
6.5 |
98 |
14.3 |
24 |
1.624.1600.01 |
10 |
1.624.1600.60 |
|
16 |
7-12 |
6.5 |
98 |
14.3 |
24 |
1.624.1600.15 |
10 |
1.624.1600.61 |
|
21 |
13-18 |
7 |
111 |
18.4 |
30 |
1.624.2100.01 |
12 |
1.624.2100.60 |
|
21 |
9-16 |
7 |
111 |
18.4 |
30 |
1.624.2100.15 |
12 |
1.624.2100.61 |
HSK-M-Flex-EMV电磁兼容带防折保护的旋紧件 Metr./NPT
|
AG
|
>|Φ<|
mm |
GL
mm |
H
mm |
d
mm |
Ψ
mm |
订货号 |
|
M12*1.5 |
3-6.5 |
5 |
55 |
6.8 |
14 |
1.624.1200.50 |
|
M12*1.5 |
2-5 |
5 |
55 |
6.8 |
14 |
1.624.1200.51 |
|
M16*1.5 |
5-10 |
6 |
77 |
10.3 |
20 |
1.624.1600.50 |
|
M16*1.5 |
3-7 |
6 |
77 |
10.3 |
20 |
1.624.1600.51 |
|
M20*1.5 |
10-14 |
6 |
98 |
14.3 |
24 |
1.624.2000.50 |
|
M20*1.5 |
7-12 |
6 |
98 |
14.3 |
24 |
1.624.2000.51 |
|
M25*1.5 |
13-18 |
7 |
111 |
18.4 |
30 |
1.624.2500.50 |
|
M25*1.5 |
9-16 |
7 |
111 |
18.4 |
30 |
1.624.2500.51 |
|
3/8"NPT |
4-8 |
15 |
66 |
8.2 |
17/19 |
1.624.3800.70 |
|
3/8"NPT |
2-6 |
15 |
66 |
8.2 |
17/19 |
1.624.3800.71 |
|
1/2"NPT |
6-12 |
13 |
88 |
12.3 |
22/24 |
1.624.1200.70 |
|
1/2"NPT |
5-9 |
13 |
88 |
12.3 |
22/24 |
1.624.1200.71 |
|
3/4"NPT |
13-18 |
13 |
111 |
18.4 |
30 |
1.624.3400.70 |
|
3/4"NPT |
9-16 |
13 |
111 |
18.4 |
30 |
1.624.3400.71 |
|
|
