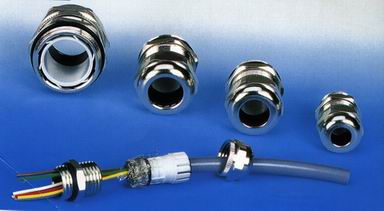

HSK-M-EMV电磁兼容型电缆旋紧件
|
|
| 产品分类：德国胡默尔电缆旋紧件产品系列 |
HSK-M-EMV电磁兼容型电缆旋紧件安装指南
|
第一步
|
|
第二步
- 将电缆线穿过螺帽
- 将电缆线穿过夹紧件
- 将屏蔽层向夹紧件回拨成伞状
- 屏蔽层须盖过O-密封圈约2mm
|
 |
第三步
|
HSK-M-EMV(电磁兼容）PG/PG-加长
 |
材料：黄铜镀镍
夹紧件：尼龙塑料（PA)
密封件：丁睛橡胶（NBR)
O-密封圈:丁晴橡胶（NBR)
防护等级：IP68-10巴（旋紧部位）
环境温度：-40°C至100°C,短时至 120°C
| TBODY>
|
AG
PG |
>|Φ<|
mm |
GL
mm |
H
mm |
Ψ
mm |
订货号 |
GL
mm |
订货号 加长 |
|
7 |
3-6.5 |
5 |
19 |
14 |
1.691.0700.01 |
10 |
1.691.0700.60 |
|
7 |
2-5 |
5 |
19 |
14 |
1.691.0700.15 |
10 |
1.691.0700.61 |
|
9 |
4-8 |
6 |
20 |
17 |
1.691.0900.01 |
10 |
1.691.0900.60 |
|
9 |
2-6 |
6 |
20 |
17 |
1.691.0900.15 |
10 |
1.691.0900.61 |
|
11 |
5-10 |
6 |
21 |
20 |
1.691.1100.01 |
10 |
1.691.1100.60 |
|
11 |
3-7 |
6 |
21 |
20 |
1.691.1100.15 |
10 |
1.691.1100.61 |
|
13.5 |
6-12 |
6.5 |
22 |
22 |
1.691.1300.01 |
10 |
1.691.1300.60 |
|
13.5 |
5-9 |
6.5 |
22 |
22 |
1.691.1300.15 |
10 |
1.691.1300.61 |
|
16 |
10-14 |
6.5 |
23 |
24 |
1.691.1600.01 |
10 |
1.691.1600.60 |
|
16 |
7-12 |
6.5 |
23 |
24 |
1.691.1600.15 |
10 |
1.691.1600.61 |
|
21 |
13-18 |
7 |
25 |
30 |
1.691.2100.01 |
12 |
1.691.2100.60 |
|
21 |
9-16 |
7 |
25 |
30 |
1.691.2100.15 |
12 |
1.691.2100.61 |
|
29 |
18-25 |
8 |
29 |
40 |
1.691.2900.01 |
12 |
1.691.2900.60 |
|
29 |
13-20 |
8 |
29 |
40 |
1.691.2900.15 |
12 |
1.691.2900.61 |
|
36 |
22-32 |
8 |
35 |
50 |
1.691.3600.01 |
15 |
1.691.3600.60 |
|
36 |
20-26 |
8 |
35 |
50 |
1.691.3600.15 |
15 |
1.691.3600.61 |
|
42 |
32-38 |
9 |
37 |
57 |
1.691.4200.01 |
15 |
1.691.4200.60 |
|
42 |
25-31 |
9 |
37 |
57 |
1.691.4200.15 |
15 |
1.691.4200.61 |
|
48 |
37-44 |
10 |
38 |
64 |
1.691.4800.01 |
15 |
1.691.4800.60 |
|
48 |
29-35 |
10 |
38 |
64 |
1.691.4800.15 |
15 |
1.691.4800.61 |
HSK-M-EMV(电磁兼容） Metr./NPT
|
AG
PG |
>|Φ<|
mm |
GL
mm |
H
mm |
Ψ
mm |
订货号 |
|
M12*1.5 |
3-6.5 |
5 |
19 |
14 |
1.691.1200.50 |
|
M12*1.5 |
2-5 |
5 |
19 |
14 |
1.691.1200.51 |
|
M16*1.5 |
5-10 |
6 |
22 |
20 |
1.691.1600.50 |
|
M16*1.5 |
3-7 |
6 |
22 |
20 |
1.691.1600.51 |
|
M20*1.5 |
10-14 |
6 |
25 |
24 |
1.691.2000.50 |
|
M20*1.5 |
7-12 |
6 |
25 |
24 |
1.691.2000.51 |
|
M25*1.5 |
13-18 |
7 |
26 |
30 |
1.691.2500.50 |
|
M25*1.5 |
9-16 |
7 |
26 |
30 |
1.691.2500.51 |
|
M32*1.5 |
18-25 |
8 |
31.5 |
40 |
1.691.3200.50 |
|
M32*1.5 |
13-20 |
8 |
31.5 |
40 |
1.691.3200.51 |
|
M40*1.5 |
22-32 |
8 |
38 |
50 |
1.691.4000.50 |
|
M40*1.5 |
20-26 |
8 |
38 |
50 |
1.691.4000.51 |
|
M50*1.5 |
32-38 |
9 |
37 |
57 |
1.691.5000.50 |
|
M50*1.5 |
25-31 |
9 |
37 |
57 |
1.691.5000.51 |
|
M63*1.5 |
37-44 |
10 |
38 |
34/68 |
1.691.6300.50 |
|
M63*1.5 |
29-35 |
10 |
38 |
64/68 |
1.691.6300.51 |
|
3/8"NPT |
4-8 |
15 |
20 |
19 |
1.691.3800.50 |
|
3/8"NPT |
2-6 |
15 |
20 |
19 |
1.691.3800.51 |
|
1/2"NPT |
6-12 |
13 |
22 |
24 |
1.691.1200.50 |
|
1/2"NPT |
5-9 |
13 |
22 |
24 |
1.691.1200.51 |
|
3/4"NPT |
13-18 |
13 |
25 |
30 |
1.691.3400.50 |
|
3/4"NPT |
9-16 |
13 |
25 |
30 |
1.691.3400.51 |
|
|
