| 产品信息 |
|
|
防护外壳上壳
|
|
| 产品分类：西霸士重载接插件产品系列 |
|
A series/A
系列 |

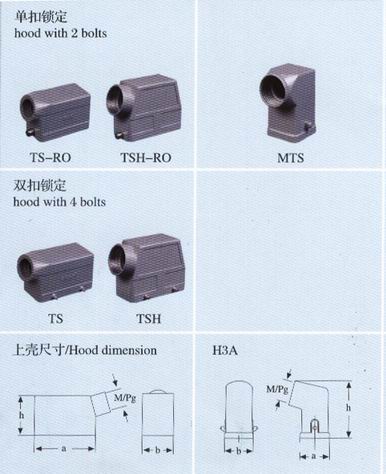

侧出线上壳/side cable entry hoods |
上壳
hoods |
a |
b |
h |
公制
Metr. |
PG制 |
双扣锁定/侧出
4 bolts hood |
单扣锁定/侧出
2 bolts hood |
H3A
金属上壳
Metal hood |
28 |
27 |
54 |
M20 |
PG11 |
|
H3A-MTS-M20
H3A-MTS-PG11 |
H3A
塑料外壳
Plastic hood |
28 |
27 |
54 |
M20 |
PG11 |
|
H3A-TS-M20
H3A-TS-PG11 |
B series hoods/b
系列上壳 |
H6B |
60 |
43 |
43
43 |
M20
|
PG11 |
|
H6B-TS-M20
H6B-TS-PG11 |
| H10B |
73 |
43 |
57
57
72
72 |
M20
M25 |
PG16
PG21
|
H10B-TS-M20
H10B-TS-PG16
H10B-TSH-M25
H10B-TSH-PG21 |
H10B-TS-RO-M20
H10B-TS-RO-PG16
H10B-TSH-RO-M25
H10B-TSH-RO-PG21 |
| H16B |
93 |
43
45 |
62
62
76
76 |
M25
M32 |
PG21
PG29
|
H16B-TS-M25
H16B-TS-PG21
H16B-TSH-M32
H16B-TSH-PG29 |
H16B-TS-RO-M25
H16B-TS-RO-PG21
H16B-TSH-RO-M32
H16B-TSH-RO-PG29 |
| H24B |
120 |
43
45 |
62
62
76
76 |
M25
M32 |
PG21
PG29
|
H24B-TS-M25
H24B-TS-PG21
H24B-TSH-M32
H24B-TSH-PG29 |
H24B-TS-RO-M25
H24B-TS-RO-PG21
H24B-TSH-RO-M32
H24B-TSH-RO-PG29 |
| H32B |
94 |
82 |
94 |
M32
M40 |
PG29
PG36
|
H32B-TS-M32
H32B-TS-PG29
H32B-TSH-M40
H32B-TSH-PG36 |
H32B-TS-RO-M32
H32B-TS-RO-PG29
H32B-TS-RO-M40
H32B-TS-RO-PG36 |
| H48B |
132 |
90 |
98 |
M32
M40 |
PG29
PG36
|
H48B-TS-M32
H48B-TS-PG29
H48B-TSH-M40
H48B-TSH-PG36 |
H48B-TS-RO-M32
H48B-TS-RO-PG29
H48B-TSH-RO-M40
H48B-TSH-RO-PG36 |
|
A series/A
系列 |

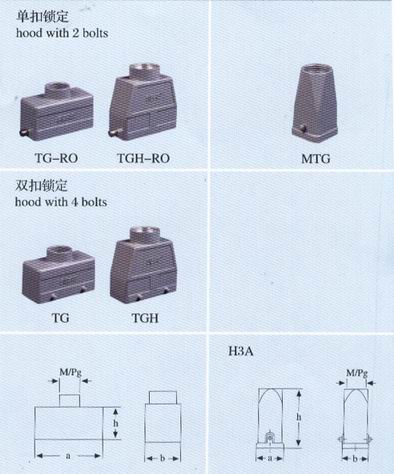

顶出线上壳/top cable entry hoods |
上壳
hoods |
a |
b |
h |
公制
Metr. |
PG制 |
双扣锁定/侧出
4 bolts hood |
单扣锁定/侧出
2 bolts hood |
对应芯体件
Suit insetrs |
H3A
金属上壳
Metal hood |
28 |
27 |
60 |
M20 |
PG11 |
|
H3A-MTG-M20
H3A-MTG-PG11 |
4回路芯件（HA-004) |
H3A
塑料外壳
Plastic hood |
28 |
27 |
60 |
M20 |
PG11 |
|
H3A-TG-M20
H3A-TG-PG11 |
4回路芯件（HA-004) |
B series hoods/b
系列上壳 |
H6B |
60 |
43 |
40
40 |
M20
|
PG11 |
|
H6B-TG-M20
H6B-TG-PG11 |
6回路芯件（HE-006) |
| H10B |
73 |
43 |
45
45
72
72 |
M20
M25 |
PG16
PG21
|
H10B-TG-M20
H10B-TG-PG16
H10B-TGH-M25
H10B-TGH-PG21 |
H10B-TG-RO-M20
H10B-TG-RO-PG16
H10B-TGH-RO-M25
H10B-TGH-RO-PG21 |
10回路芯件（HE-010) |
| H16B |
93 |
43
45 |
45
45
76
76 |
M25
M32 |
PG21
PG29
|
H16B-TG-M25
H16B-TG-PG21
H16B-TGH-M32
H16B-TGH-PG29 |
H16B-TG-RO-M25
H16B-TG-RO-PG21
H16B-TGH-RO-M32
H16B-TGH-RO-PG29 |
HE-016
HEE-032
HD-040
HSB-006 |
| H24B |
120 |
43
45 |
55
55
76
76 |
M25
M32 |
PG21
PG29
|
H24B-TG-M25
H24B-TG-PG21
H24B-TGH-M32
H24B-TGH-PG29 |
H24B-TG-RO-M25
H24B-TG-RO-PG21
H24B-TGH-RO-M32
H24B-TGH-RO-PG29 |
HE-024
HEE-046
HD-064
|
| H32B |
94 |
82 |
94 |
M32
M40 |
PG29
PG36
|
H32B-TG-M32
H32B-TG-PG29
H32B-TGH-M40
H32B-TGH-PG36 |
H32B-TG-RO-M32
H32B-TG-RO-PG29
H32B-TS-RO-M40
H32B-TG-RO-PG36 |
HE-032
HEE-064
HD-080
HSB-012 |
| H48B |
132 |
90 |
98 |
M32
M40 |
PG29
PG36
|
H48B-TG-M32
H48B-TG-PG29
H48B-TGH-M40
H48B-TGH-PG36 |
H48B-TS-RO-M32
H48B-TS-RO-PG29
H48B-TGH-RO-M40
H48B-TGH-RO-PG36 |
HE-048
HEE-092
HD-128 |
|
|
